Description

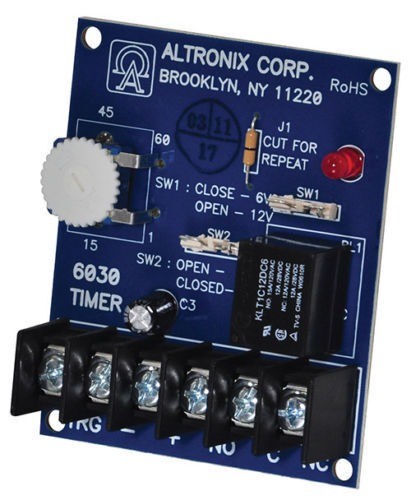

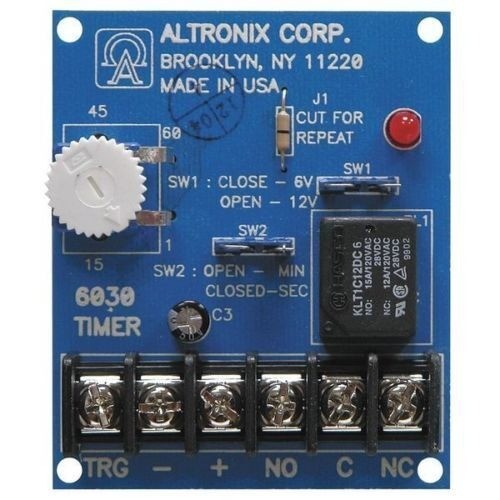

1. Timer, Multi-Purpose, 6/12VDC 1 Second to 60 Minutes, Board
2. Input
3. 6VDC or 12VDC operation is selectable.
4. Relay
5. Form “C” relay contacts are 8A at 120VAC/28VDC.
6. Current draw stand by 3mA relay energizes at 75mA.
7. Relay activates at the end of the timing cycle.

Features

• Quick and extremely accurate time range adjustment from 1 second to 60 minutes.
• Repeat (flasher/pulse) mode.
• Visual Indicators
• LED indicates relay is energized.
• Electrical

Temperature:

Operating: 0° C to 49° C (32° F to 120° F).

Storage: – 20° C to 70° C (- 4° F to 158° F).

Relative Humidity 85% +/- 5%
